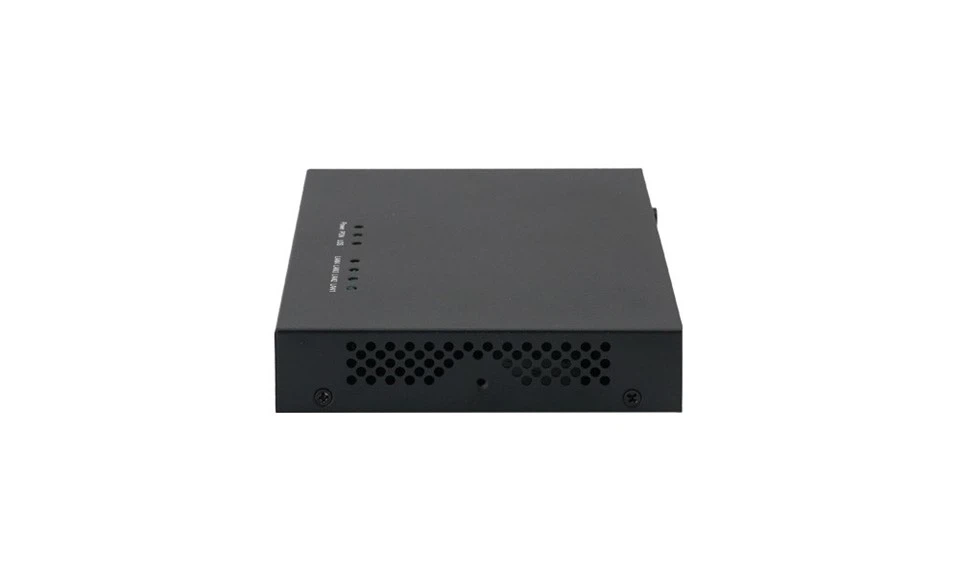

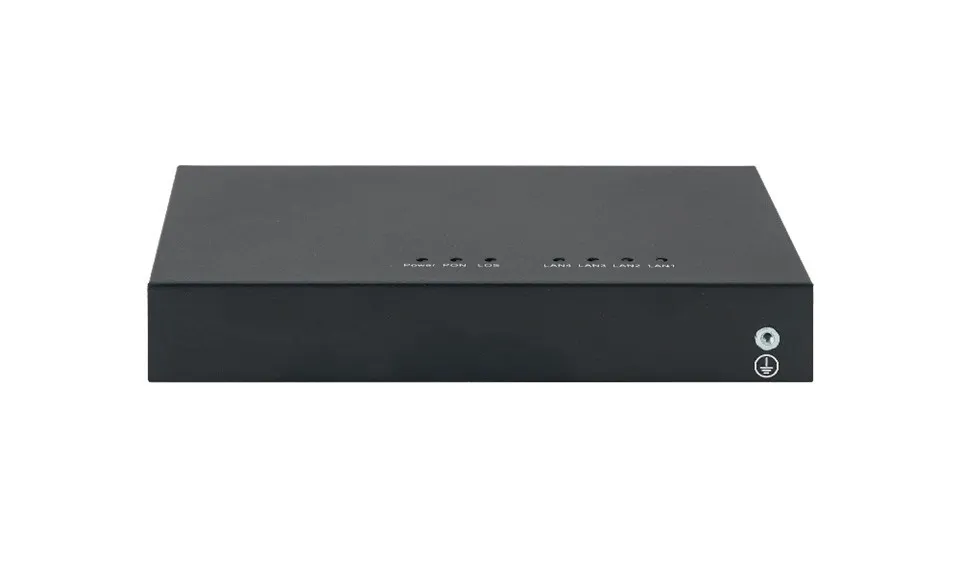

POE ONU 1GE+3FE
PONT-1G3F (1×GE+3×FE XPON POE(PSE) ONT) is specially designed to meet the FTTH, SOHO and other access requirements of telecom operators. The ONT is based on a high-performance chip solution, supports XPON dual-mode, and also supports Layer
2/Layer 3 functions, providing data services for carrier-grade FTTH applications. The four network ports of the ONT all support the POE function, which can supply power to IP cameras, wireless APs and other devices through network cables. The ONT has high
reliability, is easy to manage and maintain, and has QoS guarantees for various services. It complies with a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
|
175mm×123mm×28mm( L ×W × H) |
|
|
About 0.6kg |
|
|
Temperature: -20℃~50℃ Humidity: 5%-90%( non-condensing) |
|
|
Temperature: -30℃ ~ 60℃ Humidity: 5% -90%( non-condensing) |
|
|
DC 48V/ 1A |
|
|
<=48W |
|
|
1 ×XPON+1×GE(POE+)+3×FE(POE+) |
|
|
POWER,LOS,PON, LAN1 -LAN4 |
|
|
• 1XPON port(EPON PX20+&GPON Class B+) • TX optical power: 0 -+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm , RX1490nm |
|
|
• PoE+, IEEE 802.3at, Max 30W per port • 1*GE+3*FE Auto-negotiation,RJ45 connectors • Ethernet port-based VLAN transparent transmission and VLAN filtering |
